Brand: TZONE

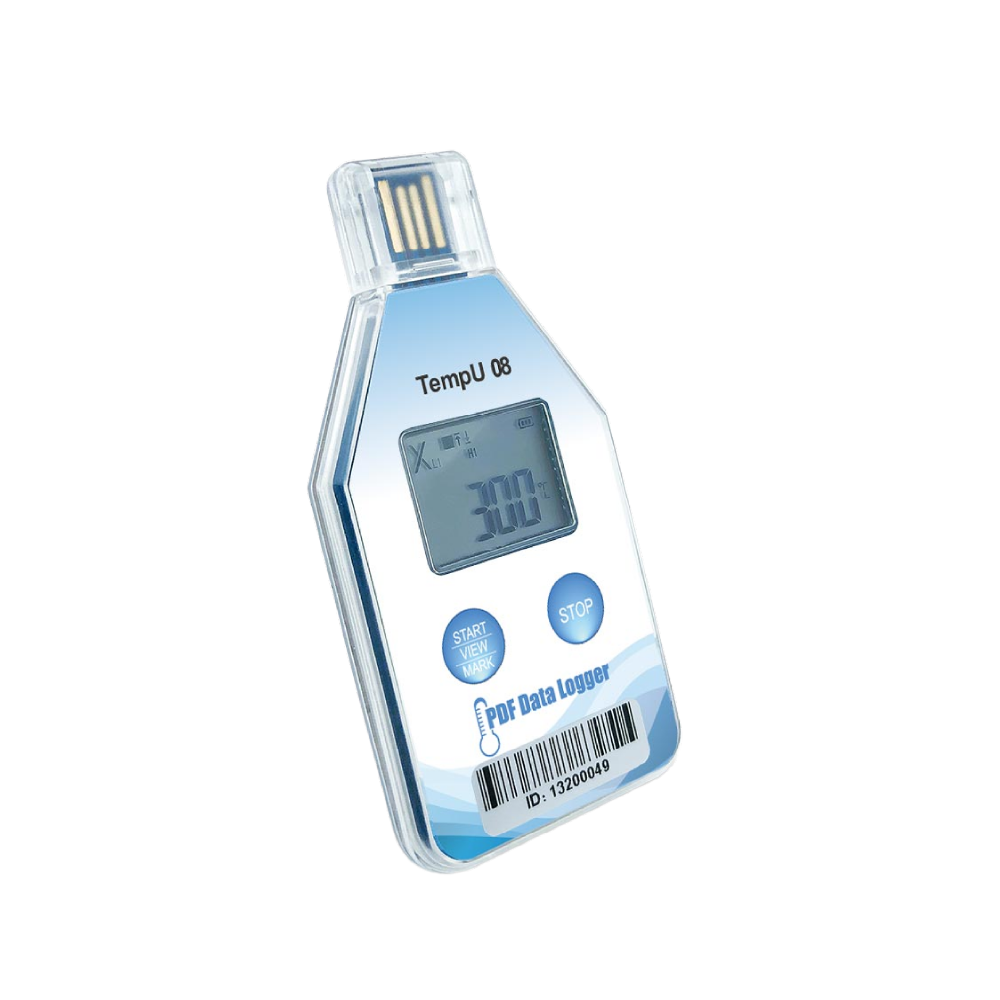

Tzone TempU08

Tzone TempU08 – Smart Single Use Data Logger in Dubai

The Tzone TempU08 is a single-use and pre-programmed USB temperature data logger. The logger doesn’t need any type of software installation for the device to function. It is engineered to monitor temperature-sensitive shipments in Dubai. A single button can start the recording process, and connecting the logger to a computer automatically retrieves a secured PDF report. This helps in immediate reviewing and documentation purposes.

The single-use temperature data logger is widely used for pharmaceutical shipments, biologics, agriculture, vaccines and other perishable products. It provides temperature records and makes the validation process easier. Furthermore, it assures the quality of the product and assists in regulated obligation.

Core Features

One touch operations in the vaccine temperature logger make the work easy. A single button press helps record data without the complications of set ups that come with traditional data loggers.

Auto generated PDF code will enable access to information regarding the supply chain. It features a built in USB port that generates a data logger data sheet without needing additional software.

Calibrated temperature sensors ensure cold chain compliance through precise measurements. This happens all through the transportation process.

The LED status and alarm indicators improve visibility during the cold chain monitoring process. It clearly displays the recording process and temperature excursion along with the device status.

The retrieval cost can be removed. Along with this, the logistics operations is simplified with the disposable pre configured design of the single use data logger.

Technical Specifications

Measurement Range: -30°C to +60°C

Temperature Accuracy: ±0.5°C (-20°C to +40°C); ±1.0°C outside this range

Resolution: 0.1°C

Data Storage Capacity: 32,000 readings

Logging Interval: User-configurable from 10 seconds to 18 hours

Start Mode: Push-button start or timed start with configurable delay (0 to 254 minutes)

Display: LCD screen showing temperature, recording status, alarms, battery level, and statistics

Connectivity: Built-in USB 2.0 interface with automatic PDF and CSV report generation

Physical Dimensions: Compact form factor of 95.5 × 49 × 7.8 mm with a weight of approximately 25 g.

Protection & Certifications: IP67-rated for dust and water resistance. Certified to CE, EN12830, and RoHS standards, with FDA 21 CFR Part 11 support and NIST-traceable calibration.

Use Cases

Can be used as a disposable temperature logger for one way shipments of speciality pharmaceuticals, biologic and blood products.

Works as a disposable data logger for pharma products in Dubai that require documented temperature records. This includes laboratory specimens and clinical trial materials.

Cold chain monitoring for vaccine shipments is made easy with a data logger single use deployment. This easily verifies the integrity of the shipment.

Acts as a vaccine data logger for the immunisation distribution and storage processes by recording temperature conditions of products.

Provides reliable monitoring during vaccine transportation and other cold chain logistics. This includes refrigerated transport of both temperature sensitive pharma and healthcare products.

Frequently Asked Questions

Q1:  What is the TZONE TempU08 and what is it used for?
Ans: The TZone Temp U08 is a single-use USB temperature data logger. It monitors and records temperature throughout the storage and shipment of temperature sensitive products. The device provides downloadable PDF and CSV reports to identify any potential excursions and review temperature conditions.

Q2:  Is the TZONE TempU08 a single use or reusable temperature data logger?
Ans: The TempU08 is a single-use and disposable temperature data logger that is designed to serve only one monitoring cycle, whether it is in transportation or storage.

Q3:  What temperature range can the TempU08 monitor?
Ans: The TempU08 is capable of measuring temperature from minus 30°C to plus 60°C. The range supports monitoring across cold chain and temperature controlled applications. This includes any kind of refrigerated transportation or shipment.

Q4:  What is the temperature accuracy of the TempU08?
Ans: The TempU08 provides ±0.5°C accuracy from -20°C to +40°C and ±1.0°C outside this range. It has a temperature resolution of 0.1°C.

Q5:  How many temperature records can the TempU08 store?
Ans: TempU08 can store up to 32,000 temperature records. The number of readings depends on the selected logging interval and the duration of the monitoring period.

Q6:  Can the logging interval be customized?
Ans: Yes. The logging interval can be configured from 10 seconds to 18 hours. The user can select a measurement frequency appropriate for the shipment based on the duration or monitoring requirements.

Q7:  Does the TempU08 support delayed start recording?
Ans: Yes, the Tempu08 has a configurable start delay option from zero to 254 minutes. It allows the logger to record after a waiting period set by the user, instead of starting immediately.

Q8:  How do I download temperature data from the TempU08?
Ans: TempU08 has a USB 2.0 interface through which you can access data after the monitoring process. The logger can be connected to a computer via USB to retrieve temperature records and generate reports.

Q9:  Does the device automatically create PDF and CSV reports?
Ans: Yes, the device can generate PDF and CSV reports automatically. The logger should be connected to a computer to create documented data of the temperatures recorded during monitoring.

Q10:  Is any software required to view the temperature report?
Ans: No software is required to generate the reports. The logger can be connected to a computer to access recorded data and generate reports.

Q11:  Does the TempU08 provide temperature alarm indications during transit?
Ans: Yes. The TempU08 unit does come with configurable temperature alarms and delay settings. In case the set temperatures are exceeded, the device will log the alarm event. This allows users to detect any temperature breaches within the review period.

Q12:  Is the TempU08 waterproof and suitable for cold-chain transportation?
Ans: The Temp U08 has an IP67 protection rating. This makes it suitable for many cold chain transportation environments, as it provides protection against dust and any temporary immersion. Hence, logger can be used in several monitoring and packaging requirements.

Q13:  Which industries commonly use the TempU08 temperature logger?
Ans: The TempU08 can be used across pharmaceutical, food, cold-chain logistics, and refrigerated storage for monitoring temperature-sensitive products. Its single-use format comes in use when individual shipments require a temperature record of its own.

Q14:  Can the TempU08 be used for vaccine, pharmaceutical, and food shipments?
Ans: Vaccines, pharmaceutical products, food and other cold chain goods can be monitored using the TempU08. It has a measurement range of -30°C to +60°C. It also features a 32,000 record capacity and supports configurable logging intervals with alarm settings.

Q15:  Why choose the TZONE TempU08 for cold chain shipment monitoring?
Ans: The TempU08 combines single use operation with -30°C to +60°C temperature measurements, configurable logging intervals and IP67 protection support. It also features automatic PDF and CSV reporting, with 32,000 record storage. These make it a practical option for documenting temperature conditions across individual shipments.
